Archival setup

This guide will walk you through the process of creating a fleet of nodes that serve archival data and how to stitch them together using a gateway

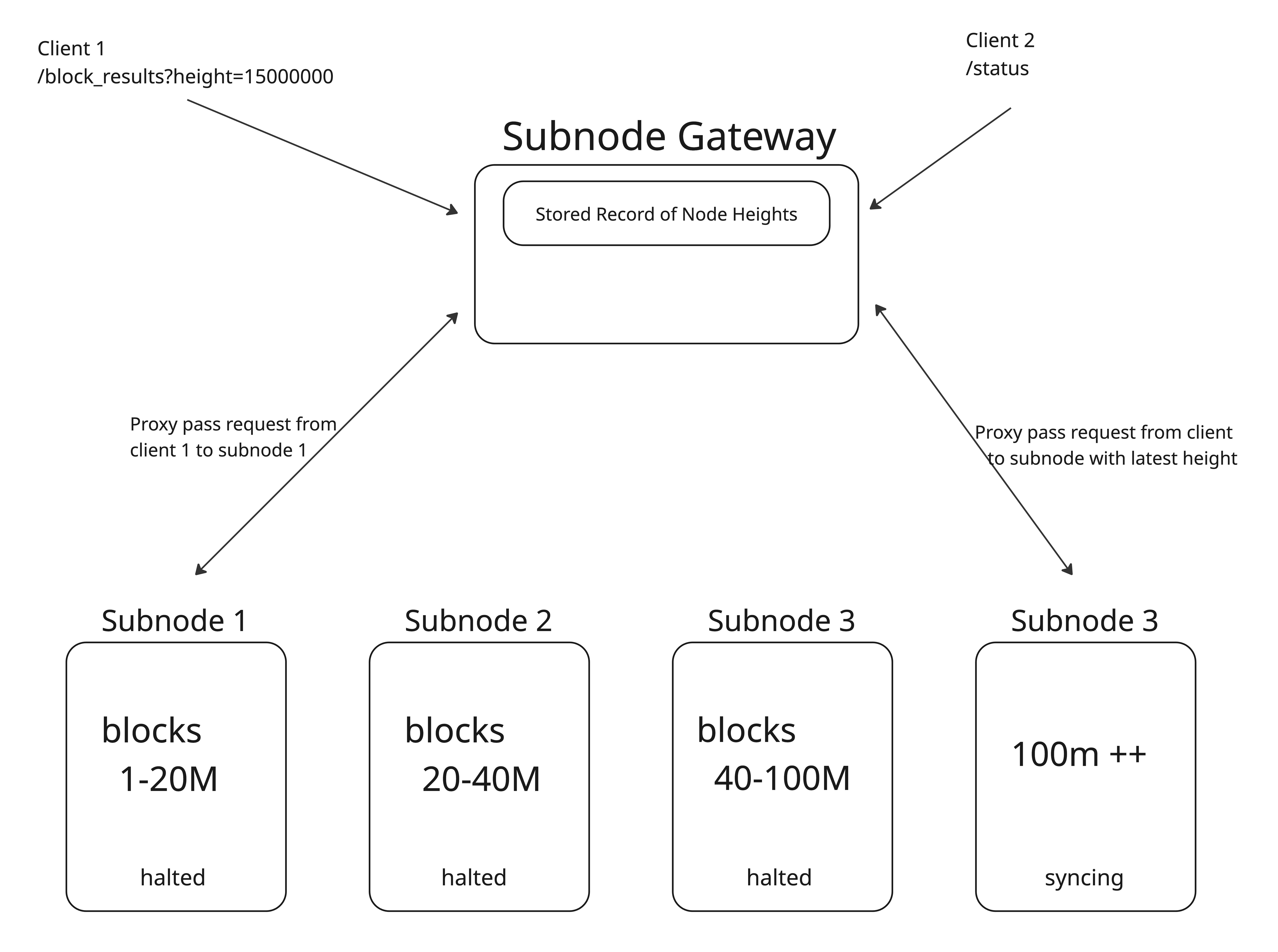

Architecture

To make serving archival data more accessible we split the data into smaller segments. These segments are stored in s3://injective-snapshots/mainnet/subnode

Snapshot Dir	Height Range	Injective Version	Recommended Disk Size
/0073	0 – 73M	v1.12.1	42 TiB
/6068	60M – 68M	v1.12.1	7 TiB
/7380	73M – 80M	v1.12.1	7 TiB
/8088	80M – 88M	v1.13.3	7 TiB
/8896	88M – 96M	v1.13.3	7 TiB
/8898	88M – 98M	v1.13.3	7 TiB
/98106	98M – 106M	v1.13.3	7 TiB
/98107	98M – 107M	v1.14.0	7.5 TiB
/66101	66M – 101M	v1.14.0	27 TiB
/105116	105M – 116M	v1.15.0	7.5 TiB
/113127	113M – 127M	v1.15.0	11 TiB
/119143	119M – 143M	v1.17.0	16 TiB
/138150	138M – 150M	v1.17.2	5.8 TiB

These segments are stitched together via gateway which is an aggregator proxy that routes queries to the appropriate node based on block range

System Requirements

Each node hosting a slice of archival data should have the following minimum requirements

Component	Minimum Specification	Notes
CPU	AMD EPYC™ 9454P	48 cores / 96 threads
Memory	128 GB DDR5 ECC	DDR5-5200 MHz or higher, ECC for data integrity
Storage	7 – 40 TB NVMe Gen 4	PCIe 4.0 drives, can be single drives or in a RAID-0 array

Setup Steps

On each node hosting an archival segment:

1. Download the archival segments with the history your setup requires using

aws s3 cp --recursive s3://injective-snapshots/mainnet/subnode/<SNAPSHOT_DIR> $INJ_HOME

2. Download or set the appropriate injective binary or image tag based on the table above

3. Generate your config folder

injectived init $MONIKER --chain-id injective-1 --home $INJ_HOME --overwrite

4. Disable pruning in your app.toml file and block p2p and set the log level to error in your config.toml files.

This ensures that the data does not get pruned and the node stays in a halted state. Setting the log level to error lessens disk ops and improves performance.

# Disable pruning in app.toml
sed -i 's/^pruning *= *.*/pruning = "nothing"/' $INJ_HOME/config/app.toml

# Disable p2p and disable create empty blocks on config.toml
awk '
    BEGIN { section = "" }
    /^\[/ {
    section = $0
    }
    section == "[p2p]" {
    if ($1 ~ /^laddr/) $0 = "laddr = \"tcp://0.0.0.0:26656\""
    if ($1 ~ /^max_num_inbound_peers/) $0 = "max_num_inbound_peers = 0"
    if ($1 ~ /^min_num_inbound_peers/) $0 = "min_num_inbound_peers = 0"
    if ($1 ~ /^pex/) $0 = "pex = false"
    if ($1 ~ /^seed_mode/) $0 = "seed_mode = false"
    }
    section == "[consensus]" {
    if ($1 ~ /^create_empty_blocks/) $0 = "create_empty_blocks = false"
    }
    { print }
    ' $INJ_HOME/config/config.toml > $INJ_HOME/config/config.tmp && mv $INJ_HOME/config/config.tmp $INJ_HOME/config/config.toml

# Set log level to error (less disk writes = better performance)
sed -i 's/^log_level *= *.*/log_level = "error"/' $INJ_HOME/config/app.toml

5. Run your node

injectived start --home $INJ_HOME

Gateway configuration

1. Clone the gateway repository

git clone https://github.com/decentrio/gateway

2. Build gateway

make build

3. Create your config file

upstream:
  # example node 1 holds blocks 0-80M while node 2 holds blocks 80-88M
  - rpc: "http://$NODE1:$RPC_PORT"
    grpc: "$NODE1:$GRPC_PORT"
    api: "http://$NODE1:$API_PORT"
    blocks: [0,80000000]
  - rpc: "http://$NODE2:$RPC_PORT"
    grpc: "$NODE2:$GRPC_PORT"
    api: "http://$NODE2:$API_PORT"
    blocks: [80000000,88000000]

  # <OTHER NODES HERE>

  # Archival tip, this serves the latest x blocks, usually set as a pruned node
  - rpc: "http://$PRUNED_NODE:$RPC_PORT"
    grpc: "$PRUNED_NODE:$GRPC_PORT"
    api: "http://$PRUNED_NODE:$API_PORT"
    blocks: [1000]


ports:
  rpc: $RPC_PORT
  api: $API_PORT
  grpc: $GRPC_PORT
  # Leave these as zero to disable for now
  jsonrpc: 0
  jsonrpc_ws: 0

4. Run Gateway

gateway start --config $CONFIG_FILE
